ACUBE RFID SMART TRAY

ACUBE RFID SMART TRAY

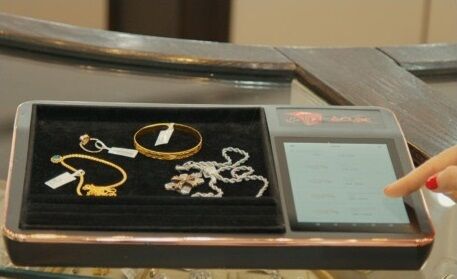

Acube Smart Tray is an ultra portable RFID 3-D Scanner used to enhance customer Experience. The Business intelligence gathering, and Analytics device is Unique interactive tray for the jewelry Industry. Short range scanning of Selected jewels or Stones on the tray makes interactive and compatible device for Jewelry shops and Retail Stores

Click here to download the Datasheet

Enquire Now

Description

  • Simplifies IoT solution development and RAIN deployments.
  • Enterprise-grade reliability and security.
  • Delivers item visibility with the performance, quality, and reliability necessary for robust solutions.
  • High-speed processing power for the high-volume of RAIN data in enterprise applications.
  • Easily connects to IoT applications with RESTful API and support for popular IoT data transfer technologies.
  • Ruggedized cast aluminum enclosure that withstands shock.
  • Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency.
  • Support for up to 32 antennas with one-wire antenna connectivity facilitates large-scale system deployments.
  • Integrated, standardized connectors provide rich support for external peripherals.

Product Details

ELECTRICAL:



Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Operating Frequency: UHF (865 – 928 MHz), region dependent
Transmit Power: +30 dBm (PoE), +33 dBm (PoE+)
Max Receive Sensitivity: -92 dBm
Max Read Distance: Not published
Max Read Rate: Up to 1,100 reads per second
Data Interface: RJ45, ethernet
GPIO: 3 out, 2 in optically isolated
Power Source: PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation



MECHANICAL:



Antenna Ports: 4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj R700 Antenna Hub
Dimensions (Without Brackets): 213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in)
Dimensions (With Bracket): 213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in)
Weight: 0.96 kg (2.12 lbs)



ENVIRONMENT:



IP Rating: IP 50
Operating Temperature: -4°F to 122°F (-20°C to 50°C)



APPLICATION INTERFACE:



Host API: LLRP API or REST API
Demo Software: ItemTest
