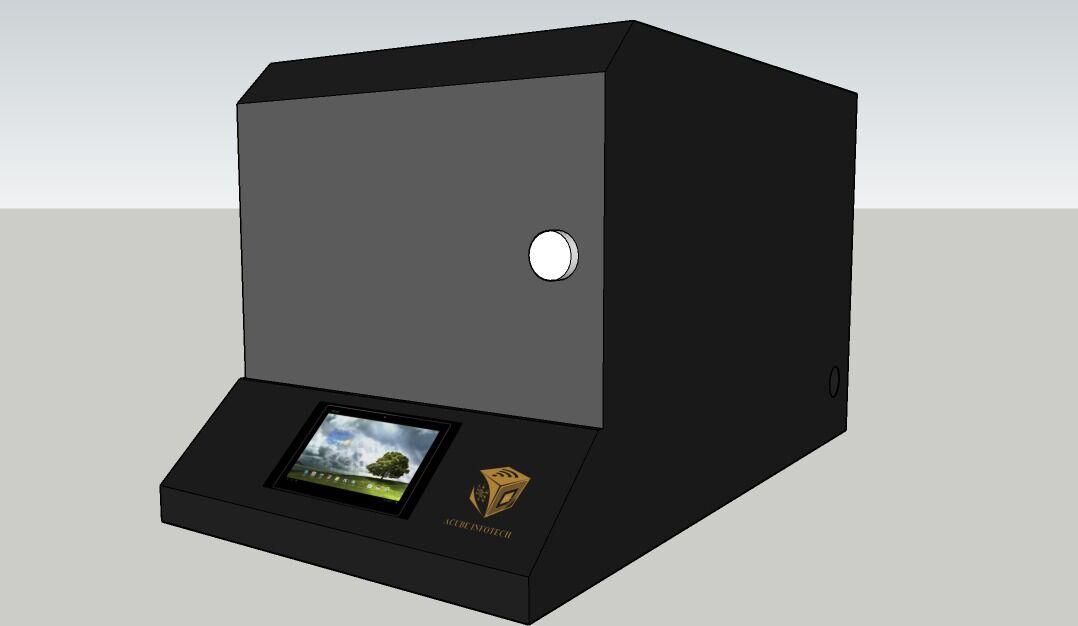

    Acube AI802 UHF RFID Smart Box:
    Acube AI802 RFID Smart Box is an award winning innovative Smart Product from Acube with onboard computing capabilities trusted by Gold and Diamond Jewellers across globally for managing and monitoring the valuable inventories. Acube RFID Smart Box powered by IMPINJ is used for workflow automation and monitoring expensive Diamond and Gold Stocks. Jewellery Smart Box provides 100% scanning of densely packaged inventory bags and stacked trays in challenging environments.
    Acube Smart Box is used by customers in Jewellery manufacturing Plants, Jewellery Exhibitions and Retails for Shipment Verifications, Consignment Transfers, Bulk Invoicing, Stock Taking and more.
    Acube Smart Tray can be used along with any type of Jewellery Trays used in the industry and the solution allows users to stack up the Trays all together and scan the inventory in matter of seconds. Acube RFID Smart Box Scanner confines the RFID Signals within the Box making it easier for Gold and Diamond wholesalers and retailers for managing the inventory accurately with scanning capability of upto 1000 items in a single attempt with the help of RFID 3D Scanning technology.


    Click here to download the Datasheet

    Enquire Now

    • Simplifies IoT solution development and RAIN deployments.
    • Enterprise-grade reliability and security.
    • Delivers item visibility with the performance, quality, and reliability necessary for robust solutions.
    • High-speed processing power for the high-volume of RAIN data in enterprise applications.
    • Easily connects to IoT applications with RESTful API and support for popular IoT data transfer technologies.
    • Ruggedized cast aluminum enclosure that withstands shock.
    • Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency.
    • Support for up to 32 antennas with one-wire antenna connectivity facilitates large-scale system deployments.
    • Integrated, standardized connectors provide rich support for external peripherals.
    ELECTRICAL:
    Air Interface Protocol:
    EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
    Operating Frequency:
    UHF (865 – 928 MHz), region dependent
    Transmit Power:
    +30 dBm (PoE), +33 dBm (PoE+)
    Max Receive Sensitivity:
    -92 dBm
    Max Read Distance:
    Not published
    Max Read Rate:
    Up to 1,100 reads per second
    Data Interface:
    RJ45, ethernet
    GPIO:
    3 out, 2 in optically isolated
    Power Source:
    PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation
    MECHANICAL:
    Antenna Ports:
    4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj R700 Antenna Hub
    Dimensions (Without Brackets):
    213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in)
    Dimensions (With Bracket):
    213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in)
    Weight:
    0.96 kg (2.12 lbs)
    ENVIRONMENT:
    IP Rating:
    IP 50
    Operating Temperature:
    -4°F to 122°F (-20°C to 50°C)
    APPLICATION INTERFACE:
    Host API:
    LLRP API or REST API
    Demo Software:
    ItemTest
