• Confidex Steelwave Micro II

    Confidex Steelwave Micro II

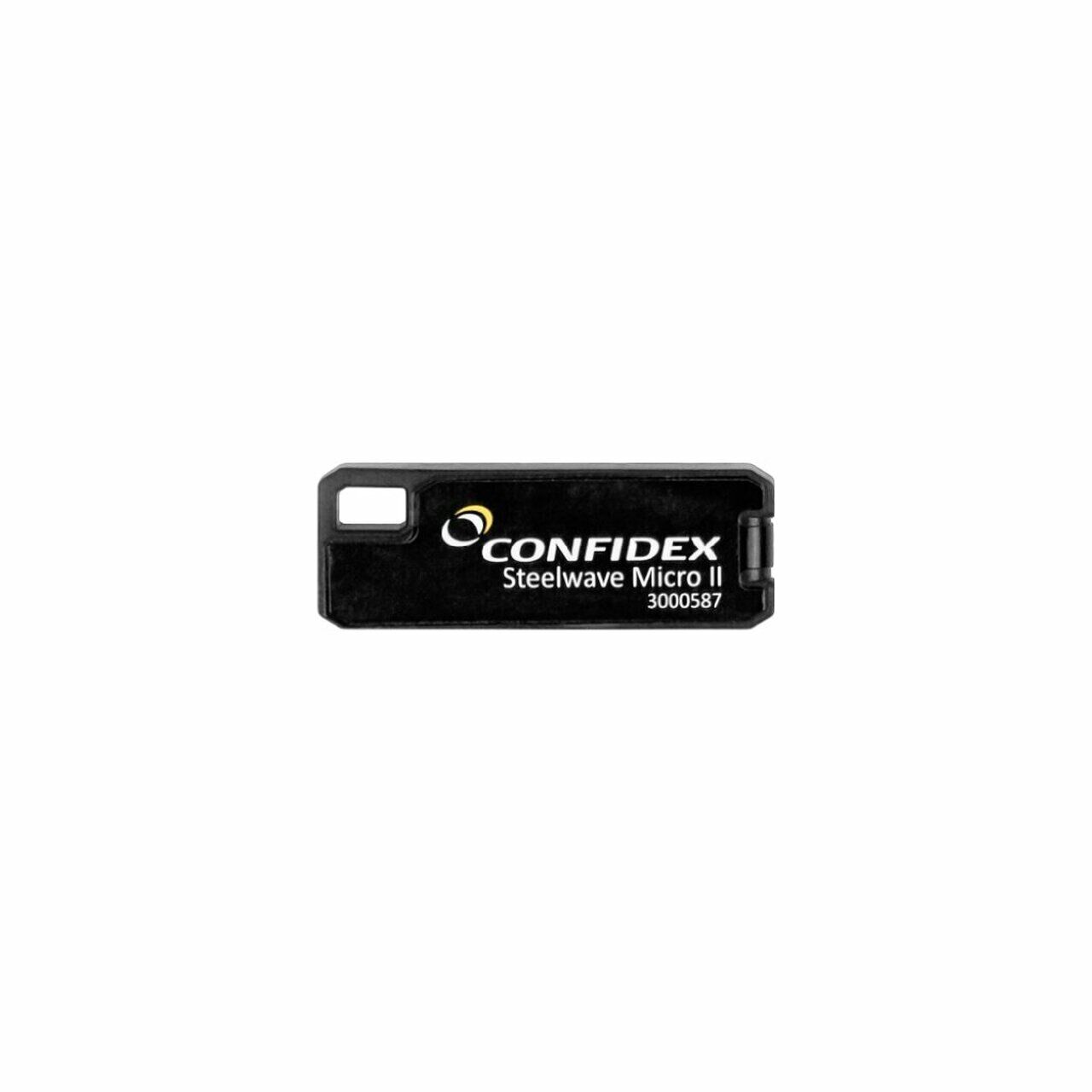

    Confidex Steelwave Micro II is a miniature UHF on-metal tag, which for its size provides unparalleled performance. It offers new possibilities for companies to improve their fixed asset management. The performance and value of Steelwave Micro has excited organizations as more accurate information about their property can be retrieved faster and with less error. Confidex Steelwave Micro II peak performance is achieved when tag is attached on-metal. However, it can be very well used on any surface or even hanging. Versatile attachment options make this small product a real all-around indoor asset tag.

    Enquire Now

    • Small form factor.
    • Extremely versatile.
    • On and off metal tag.
    • IP 67 rated.
    ELECTRICAL:

    Air Interface Protocol:
    EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
    Operating Frequency:
    Global (865-928 MHz)
    IC Type:
    Impinj Monza 4QT™
    Memory:
    EPC 128 bit, User 512 bit, TID 48 bit
    EPC Memory Content:
    Unique, randomized number
    Max Read Distance – On Metal:
    Up to 5 m (16 ft)
    Max Read Distance – Off Metal:
    Up to 1.5 m (5 ft)
    Applicable Surface Materials:
    Any material
    MECHANICAL:

    Tag Form Factor:
    Hard Tag
    Tag Materials:
    Engineering plastics, synthetic face layer
    Attachment Method:
    High performance acrylic adhesive
    Dimensions:
    38 x 13 x 4.5 mm (1.5 x 0.5 x 0.17 in)
    Weight:
    2 g
    ENVIRONMENT:

    Operating Temperature:
    -20° to +70°C (-4° to +158°F)
