• EXARK EX-101 UHF PALLET RFID TAG

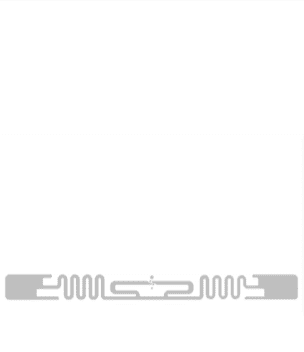

    EXARK EX-101 UHF PALLET RFID TAG

    EXARK EX-101 is a passive UHF RFID Label designed specifically for Pallets tracking, Tyre management and other Logistic Applications. It is a high-performance, general purpose RFID inlay for use in a wide variety of applications


    Click here to download the Datasheet

    Enquire Now

    • High tag read rate increases efficiency and reduces costs.
    • Single charging station for Reader and Computer makes it easy and faster to charge.
    • Ergonomic, balanced design provides extended use in different usage scenarios.
    • Exceptional read range, increases productivity and decreases manual effort.
    • Large, 4000 mAH battery enables uninterrupted use over long periods.
    ELECTRICAL:

    Standards
    EPC Global Class1 Gen2 ISO 18000-6C

    Frequency Ranges
    Global 860-960MHz

    IC type
    Monza R6-P

    Memory configuration
    EPC96 bits extensible to 128-bits

    Read range
    Up to 32ft/10 m

    Mode of Operation
    Passive

    MECHANICAL:

    Substrate
    PET

    Liner
    Glassine Liner

    Face material
    PET

    Tag dimensions
    60x 40 mm

    ENVIRONMENT:

    Operating Temperature
    -20°C~75°C

    Operating Humidity
    -20°C~85°C

    Storage Temperature
    -20°C~75°C

    APPLICATION INTERFACE:


    Used In Solutions
