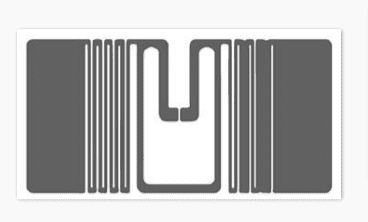

EXARK EX – 305 UHF RFID TAG

EXARK EX – 305 UHF RFID TAG

EXARK EX-305 UHF RFID Label is specially designed for use on small retail items in Cosmetics and Health & Beauty. Its small form factor is ideal for items that require RFID performance, but have limited available surface space.

Click here to download the Datasheet
Enquire Now

Description

  • Suitable for small retail
    merchandises
  • Retail
  • Supply Chain Management
  • Stable performance
  • Ideal for fashion Retail
  • Improve product
    management and tracking
    assets

Product Details

ELECTRICAL:

Standards: EPC Global Class1 Gen2 ISO 18000-6C
Frequency Ranges: Global 860-960MHz
IC type: NXP UCODE 7
Memory configuration: EPC96 bits; Unique TID 96 bits;
Read range: Up to 5ft/1.5 m
Mode of Operation: Passive



MECHANICAL:



Substrate: PET
Liner: Glassine Liner
Face material: PET
Tag dimensions: 25x 15 mm



ENVIRONMENT:



Operating Temperature: -20°C~50°C
Operating Humidity: -20°C~65°C
Storage Temperature: -20°C~50°C



APPLICATION INTERFACE:
