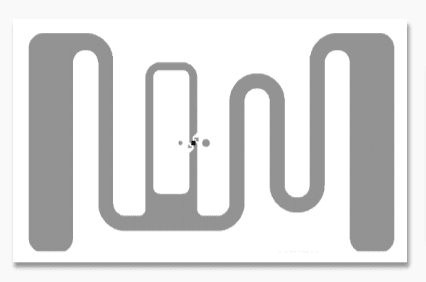

• EXARK EX – 5434 UHF UNIVERSAL RFID MINI ASSET TAG

    EXARK EX – 5434 UHF UNIVERSAL RFID MINI ASSET TAG

    EXARK EX-5434 UHF RFID Label is specially designed for high read performance in the retail and apparel markets. This tag has a form-factor especially suitable for hang-tags.


    Click here to download the Datasheet

    Enquire Now

    • Extremely high read-rates in real-life, every day retail environments
    • High inventory accuracy and visibility
    • Excellent bulk reading performance
    • improve product management
    • Tuned for use in retail environments packed shelves or hanging garments
    ELECTRICAL:

    Standards
    EPC Global Class1 Gen2 ISO 18000-6C

    Frequency Ranges
    Global 860-960MHz

    IC type
    NXP UCODE 8

    Memory configuration
    EPC128 bits; Unique TID 96 bits;

    Read range
    Up to 22ft/7 m

    Mode of Operation
    Passive

    MECHANICAL:

    Substrate
    PET

    Liner
    Glassine Liner

    Face material
    PET

    Tag dimensions
    54x 34 mm

    ENVIRONMENT:

    Operating Temperature
    -20°C~50°C

    Operating Humidity
    -20°C~65°C

    Storage Temperature
    -20°C~50°C

    APPLICATION INTERFACE:


    Used In Solutions
