• EXARK XK – 570

    EXARK XK – 570

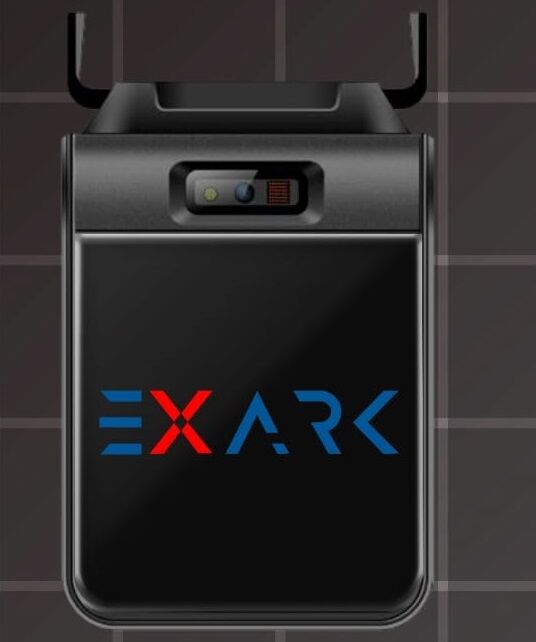

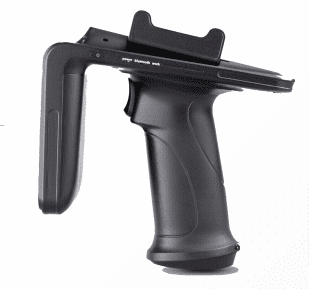

    The EXARK XK-570 is a robust, simple to use UHF passive RFID Sled Reader designed for all day intensive use. This device features powerful UHF reading and writing, and barcode scanning with high sensitivity, can attach mobile phone to this UHF Sled Reader for a complete one-piece solution. The device can be widely deployed in Retail, warehouse management, vehicle management, financial management and so forth.

    Enquire Now

    • Supports Apple iOS® and Google Android®
    • ETSI 6–867.6 MHz or FCC/IC 902–928 MHz
    • 2D imager supporting all major 1D / 2D barcodes
    • Bluetooth Low Energy communications to Smart Device
    • Fast RFID tag capture in various environments
    • High performance battery for full shift operation
    ELECTRICAL:

    Standards
    ISO 18000-63 (EPC Class 1 Gen2v2) AES authentication in accordance with ISO/IEC 29167-10 supported

    Frequency
    ETSI 865.6–867.6 MHz or FCC/IC 902–928 MHz

    RF Power
    ERP 2W/EIRP 3.3W

    Long battery life
    5200 mAh Low power electronics Up to 70 hours of intensive use

    Power
    Battery specification: 5200mAh,Standby: over 70 hours ,Continuous use: up to 6 hours (UHF reading)

    MECHANICAL:

    Antenna features
    Software controlled antenna modes :circular and proximity Nominal reading distance: circular polarization mode 10m/13 ft, proximity mode, read range down to 1 cm/0.4 inch

    Dimensions
    143.5x77x134mm / 5.62×3.00×5.27in

    Weight
    465g/16.40oz (with battery)

    Interfaces
    Micro-USB

    Antenna parameter
    Circular Polarized Antenna (3dBic)

    ENVIRONMENT:

    Operating Temp.
    -4 F to 122F / -20 C to 50 C

    Storage Temp.
    -40 F to 158 F / -40 C to 70 C

    Humidity
    5%RH – 95%RH non condensing

    APPLICATION INTERFACE:

    Host API:
    LLRP API or REST API
