• IMPINJ R700

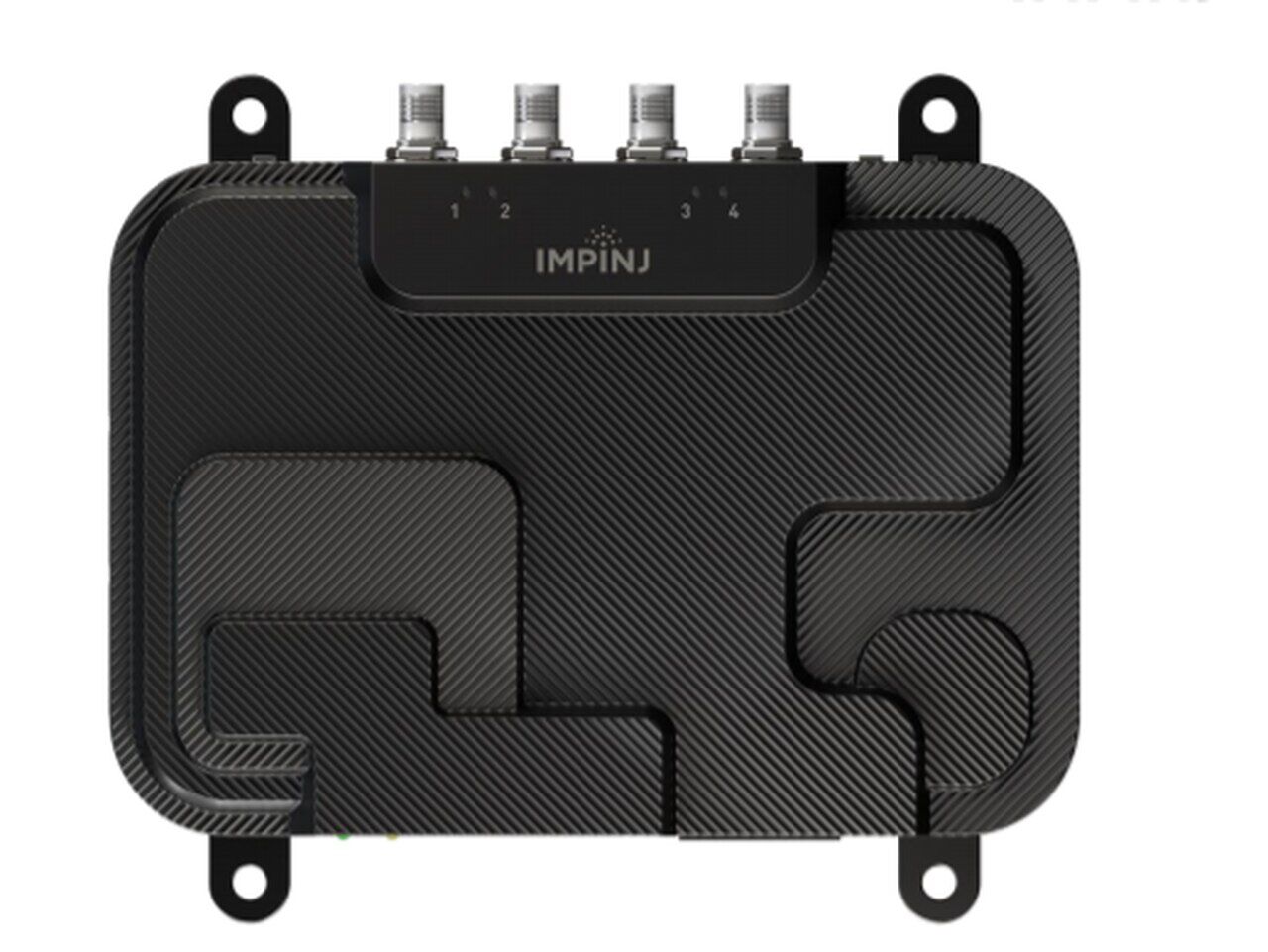

    Impinj R700 RAIN RFID Reader

    The Impinj R700 RAIN RFID Reader is designed to support global enterprise RAIN deployments that need high performance and reliability. The Impinj R700 reader delivers industry-leading performance with the best receive sensitivity, fastest network connectivity, and powerful edge processing for next-generation IoT solutions. IoT developers can easily build and deploy customized solutions with developer-friendly APIs, versatile, standardized connections, and support for up to 32 antennas.

    Enquire Now

    • Simplifies IoT solution development and RAIN deployments.
    • Enterprise-grade reliability and security.
    • Delivers item visibility with the performance, quality, and reliability necessary for robust solutions.
    • High-speed processing power for the high-volume of RAIN data in enterprise applications.
    • Easily connects to IoT applications with RESTful API and support for popular IoT data transfer technologies.
    • Ruggedized cast aluminum enclosure that withstands shock.
    • Gigabit Ethernet connectivity prevents data bottlenecks and lowers latency.
    • Support for up to 32 antennas with one-wire antenna connectivity facilitates large-scale system deployments.
    • Integrated, standardized connectors provide rich support for external peripherals.
    ELECTRICAL:


    Air Interface Protocol:
    EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)

    Operating Frequency:
    UHF (865 – 928 MHz), region dependent

    Transmit Power:
    +30 dBm (PoE), +33 dBm (PoE+)

    Max Receive Sensitivity:
    -92 dBm

    Max Read Distance:
    Not published

    Max Read Rate:
    Up to 1,100 reads per second

    Data Interface:
    RJ45, ethernet

    GPIO:
    3 out, 2 in optically isolated

    Power Source:
    PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation

    MECHANICAL:


    Antenna Ports:
    4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj R700 Antenna Hub

    Dimensions (Without Brackets):
    213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in)

    Dimensions (With Bracket):
    213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in)

    Weight:
    0.96 kg (2.12 lbs)

    ENVIRONMENT:


    IP Rating:
    IP 50

    Operating Temperature:
    -4°F to 122°F (-20°C to 50°C)

    APPLICATION INTERFACE:


    Host API:
    LLRP API or REST API

    Demo Software:
    ItemTest
